OS X ML Success! ASUS P8z68-v Pro Gen 3 Dual nVidia GTX 560ti 448 GFX, 3 Monitors

Status
Not open for further replies.
Joined
Sep 8, 2012
Messages
108
Motherboard
Gigabyte GA-Z97x-UD7 TH
CPU
i7 4790K
Graphics
GTX 980
Mac
  1. MacBook Air
  2. MacBook Pro
Mobile Phone
  1. iOS
It took about 15 installs to get my procedures and MultiBeast settings just right but it is finally up and running and working pretty d@mn good. A few snags here and there that I will note but completely functional. Boots from hard drive, screensaver works, sleep works (monitors shutdown though PC doesn't sleep), wakes from sleep, App store works, internet works, HD audio working, bluetooth working, USB 3.0 connectivity works (USB3.0 speed charge not working). I'll recap my settings, procedures and the remaining issues I'm having. Hopefully this will help some of you guys with similar setups out.

System specs:
ASUS P8Z68-V Pro Gen 3 (1155 socket) mobo
Intel Core i72600k
Dual EVGA GTX 560ti 448 Classified gfx cards
Dual Western Digital Black Caviar SATA6 1TB HDDs
- Windows 7 & 8 dual partitioned on first drive, OS X ML on second, booting both fine

Install Procedures:
Before I started with the install, I flashed the patched 3402 BIOS for my board located here: http://bios4asus.blogspot.com
To flash the BIOS, just boot to the BIOS splash screen and select the EZFlash tool. Reboot and start the install process below.

1. Made UniBeast install USB per the Guide http://www.tonymacx86.com/61-unibeast-install-os-x-mountain-lion-any-supported-intel-based-pc.html
2. Unplugged the second monitor from the primary gfx card (PCIe slot 1) and the monitor plugged into the ssecond gfx card (PCIe slot 2) leaving only the single monitor plugged into the primary card
3. Booted to BIOS splash screen (press Delete to reach BIOS) and selected to boot from my USB
4. When the Chimera screen comes up, I entered the following boot command: PCIRootUID=0 GraphicEnabler=No -v
5. Verbose text flew and then switched to the OS X Install screen in full resolution
6. Follow the guide above for partioning your drive and installing OS X ML... wait 21 minutes
7. The system will restart on its own. I let my system boot into Windows 7 (primary boot partition) then shut down from there.
8. With the PC shut down, I plugged in my second monitor to the primary gfx card and my third monitor to the secondary gfx card.
9. Booted back up to the BIOS splash screen.
10. Select the USB again but this time, when the Chimera boot screen comes up, scroll to the hard drive (or partition) you installed OS X ML on. Before you select it, enter the following boot commands: PCIRootUID=0 -v
11. OS X should boot up in full resolution on all three monitors. Finish the install process by going through the configuration screens.
12. When you get to the desktop, internet should be working as OS X recognizes the Intel chipset natively. Audio will not work.
13. Open Safari and navigate to this site and to the download page and download MultiBeast 5.0.2 Mountain Lion or run it from your USB if you installed it on there.

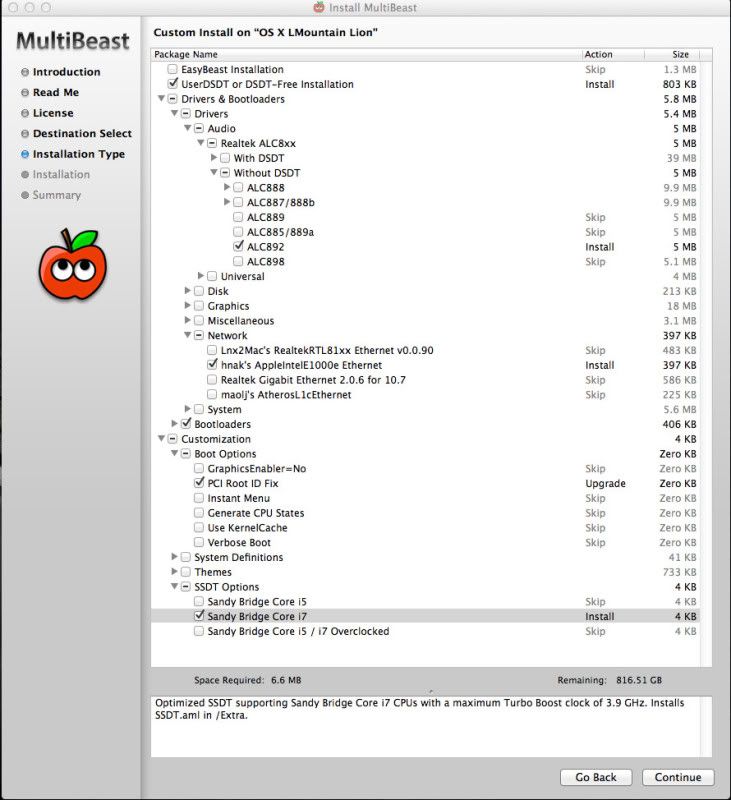

14. Below is a screenshot of my MultiBeast settings. These are what worked for me for my specific hardware. I did not use a DSDT as it isn't needed on for this board with the patched BIOS.

-NOTE- I would suggest NOT selecting the hnak AppleIntelE1000 network driver as the onboard LAN card was recognized out-of-the-box and I don't think it was actually necessary and may have slowed my internet down a touch, this is one of the *issues* I'm working on still.
DO NOT select the Graphic driver. The 560ti 448 cards are recognized out-of-the-box and when I did select the graphic driver, it would boot to a black screen.
***MOST IMPORTANT*** The boot options are the most important part, if they're wrong, you'll boot to a black screen and have to reinstall and start over. Note the PCIRoot ID Fix is selected although it actually makes the incorrect adjustment to the boot plist by notating the 1 identifier, we will fix this shortly. Do not select the Graphic Enabler option as we want the Graphic Enabler to be set to Yes. This is done as part of the UserDSDT/DSDT Free Installation option.
15. Select Continue and allow the installation to complete.
16. Once it is complete, close MultiBeast and go to your search Magnifier in the upper right hand corner and type the name of your hard drive/partition. When you open it up, there should be a file titled 'Extra' inside. Open that file, then open the org.chameleon.Boot.plist file. 17. This is where you will fix the PCIRootUID indicator. When you open the file, it will read PCIRootUID=1. Change the 1 to a 0. It should look like this:

18. Close the file and shutdown.
19. While the PC is off, remove the USB stick and then power back on.
20. Boot to the BIOS splash and this time, select your OS X hard drive/partition to boot from. The Chimera boot screen will come up with a small blue box that counts down for about 5 seconds. It should then go the Apple splash screen. For me, this screen was not in full resolution for some reason. But after about 8-10 seconds, it loaded up the desktop in full resolution, all three screens working, HD audio working, App store working, bluetooth working (as noted above), and sleep/wake working (sort of).

Issues:
Below are the problems I'm still currently having. I will follow up with resolutions if/when I find them.

1. Internet is a bit finicky. Sometimes it will be very slow, other times it is lightning fast. I think this is due to the hnak driver being selected when it wasn't necessary. A new driver should be out shortly that should fix this if you already have it installed.
2. PC doesn't sleep. The monitors shut down but the PC stays on. This isn't a huge issue for me but I'm working on it.
3. USB3.0 speed charging isn't working. Again, not a huge deal but if you use your USB3.0 for charging your devices, you know how nice it is to be able to fully charge a dead iPad in 20 minutes with it.
4. P States are untested. I just haven't gotten around to it yet. Anyone have any good apps for testing and suggestions for core clock rates for over clocking? I've read that all the cores need to be set at slightly different clock rates for best performance. Lots of detail in the post-install sections, i'll work my way to it.

All-in-all, it's working well. iTunes is syncing with my iPhone 4S and it just updated to 10.7 for iOS6 support for my iPad and iPhone 5 when it comes in next Friday.

I will try to help if you have a similar system/setup. Feel free to post questions.

Thanks samisnake, MacMan, and of course Tony for all the help with my install.

Joined
Nov 30, 2011
Messages
13
Motherboard
Asus Vivobook F510UA
CPU
Intel Core i5-8250U
Graphics
Intel UHD620
this is great! i was able to get my system working with your tutorial. my only thing i need now is HDMI audio over my GTX 570 SC. do you have any ideas how to do that? thanks!

Joined
Sep 8, 2012
Messages
108
Motherboard
Gigabyte GA-Z97x-UD7 TH
CPU
i7 4790K
Graphics
GTX 980
Mac
  1. MacBook Air
  2. MacBook Pro
Mobile Phone
  1. iOS
I use external speakers so using the ALC892 codec (the realtek driver on our mobo) worked for me. I assume your using a TV or monitor with integrated speakers and don't have sound via the HDMI connection. I haven't tried that but it is obviously a gfx setting. Try checking the post install forum for help. I'd also try a dual link DVI if your monitor allows.

Joined
Sep 10, 2012
Messages
25
Motherboard
Gigabyte Z68X-UD3H-B3
CPU
i7 2700k
Graphics
navida geforce gtx 550 ti
Mac
Classic Mac
Mobile Phone
could you help me with my board? Its a ASUS P8Z68-V/GEN3

Joined
Sep 10, 2012
Messages
25
Motherboard
Gigabyte Z68X-UD3H-B3
CPU
i7 2700k
Graphics
navida geforce gtx 550 ti
Mac
Classic Mac
Mobile Phone
What should I Change in the bios setings to?

Joined
Jan 17, 2011
Messages
181
Motherboard
Asus Prime Z370-A
CPU
i7-8700K
Graphics
2xGTX 980 Ti, 1xGTX 970, UHD 630
Mobile Phone
  1. Android
  2. iOS
What should I Change in the bios setings to?

Try this:
Extreme Tweaker:
AI Overclock Tuner = Manual
Turbo ratio = By number of active cores mode
Internal PLL Overvoltage = Disabled
Realtime Ratio Changes in OS = Disabled

-----------------------------------------------------

Advanced\CPU Configuration:
CPU Ratio = Auto
CPU C1E = Enabled
C3 Report = Enabled
C6 Report = Enabled

------------------------------------------------------

Advanced\USB Configuration:
EHCI Hand-Off = Enabled

------------------------------------------------------

Advanced\SATA Configuration
SATA Mode = AHCI

Joined
Aug 24, 2012
Messages
1
Motherboard
win7
CPU
toshiba
Graphics
intel
Mac
Classic Mac
Mobile Phone
Have you found a fix for the sleep issue? I have the ASUS P8Z68-V PRO motherboard with 560ti graphics card. Everything seems to be working good except for the sleep thing. Kind of a real pain.

When I tell it to sleep or after the time allotted for sleep, the monitor shuts off, the keyboard and mouse shut their lights off, but the fan and case lights remain on. Then, I hit a button on the keyboard and the keyboard lights back up but the computer does not wake up. It will just stay lit up and fan running. Hard drive lights do not flash when I hit anything. I have to hold the power button down to turn it off then back on.

I have put the SleepEnabler.kext in the Extras folder but that didn't work.

Thanks for any help.

Joined
Jun 24, 2011
Messages
29
Motherboard
evga 2066
CPU
i7
Graphics
GT 440
Hello, so I have this same setup minus the video card which I have is a Nvidia 440, I followed every step on this page, and the install went great. what my problem is when I boot in and install multibeast and its drivers. and config the text file for the boot and reboot. keeps crashing. and I reinstalled the OSX about 4 times now with the same issues. so i noticed in the bios that the bios needed an update. so i patch it with 3603 from Asus website, and now when i try to boot into the setup its hangs at the grey screen and mouse is acting busy but doesn't go anywhere? Please help!

Thanks
